RJY-22-B102AD

$21.00

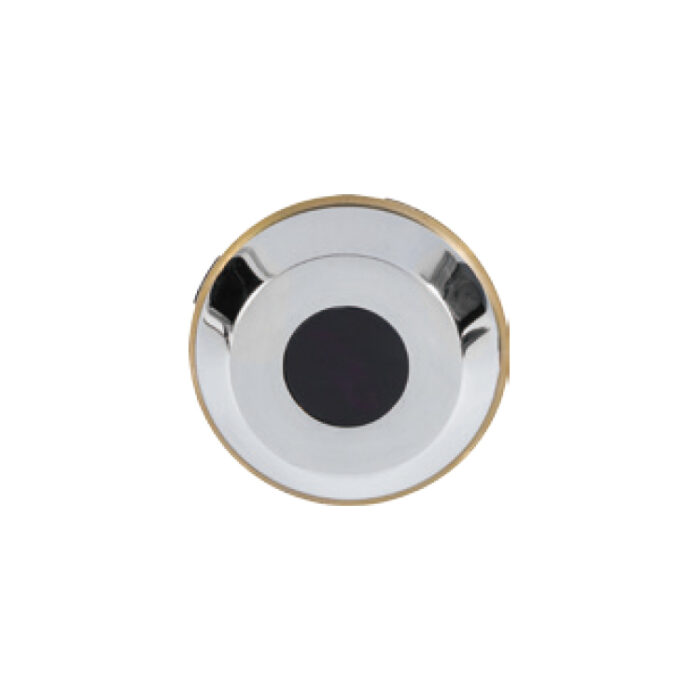

Integrated Urinal Sensor

Product: Sensor Urinal Flush Valve

Model No.: RJY-22-B102AD

Technology: Infrared Sensor

Power Supply: DC6V/AC220V

Body Material: Brass

Sensor Distance: 50-60cm (Human Body)

Inlet/Outlet Size: G1/2”

Description

  • Automatic flushing: pre-flush 2 seconds and after flush 6 seconds. After-flush timing adjustable by remote controller. Adjustable range 3-24 seconds.
  • Low power reminding: When the battery is low, the indicator light flashes for 10 seconds to remind you of replacing with new batteries. The flush valve will not flush.
  • Anti-reverse wire connection: The sensor will not be heat or damaged if the power supply wire positive and negative terminals are reversely connected. The sensor will work normally if wires are correctly connected.
  • Power protection: When the battery or mains power suddenly cut off, the sensor will automatically turn off the solenoid valve within 20 seconds.



  • It is suitable for the separate design of sensor plate and water flush nozzle. The sensor plate is designed according to the ceramic opening size.
  • Sensor plate is made of copper.
  • Product includes: sensor plate + solenoid valve (with water sealing rubber) + water inlet hose + power supply
