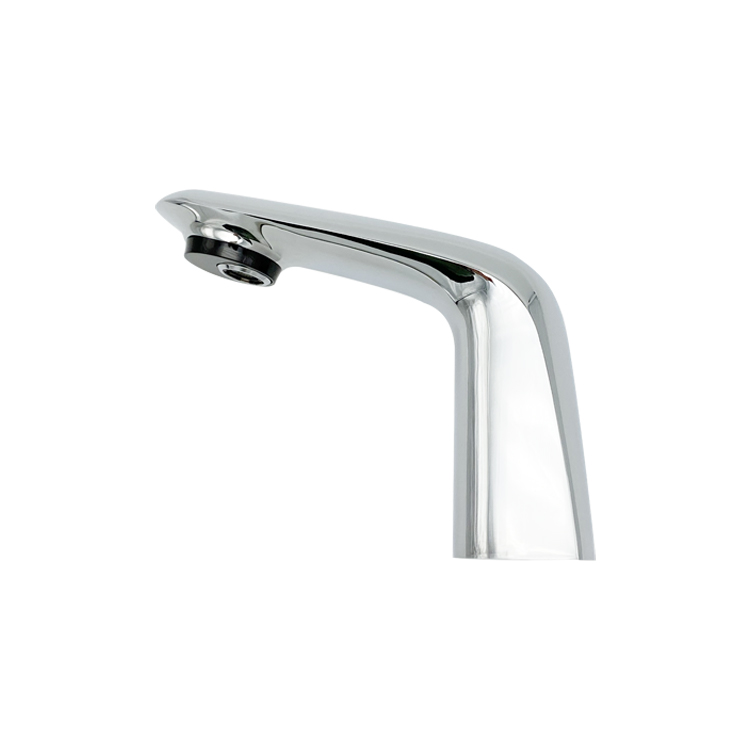

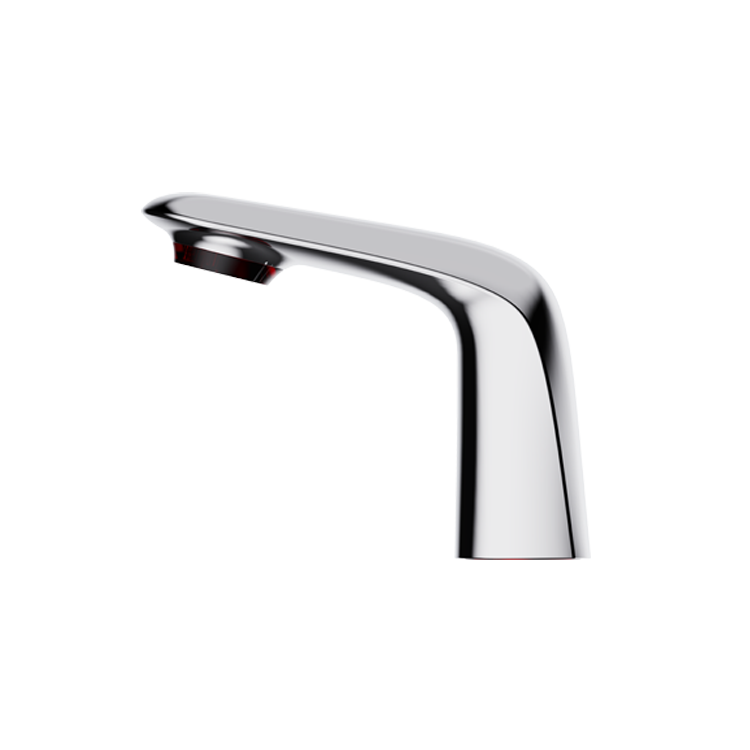

Deck-mounted Sensor Basin Faucet

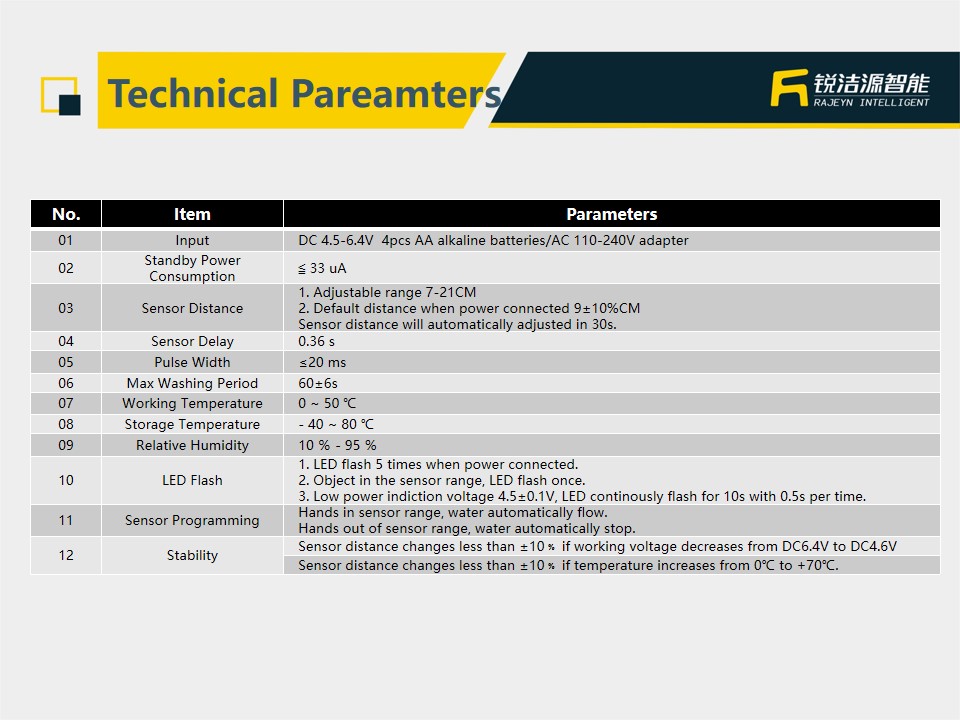

Product: Smart Basin Faucet
Model No.: RJY-11-B114.2AD
Technology: Infrared Sensor
Power Supply: DC6V
Body Material: Brass
Sensor Distance: Auto Calibrated
Inlet/Outlet Size: G1/2”
RJY-11-B114.2AD
$19.00
Description

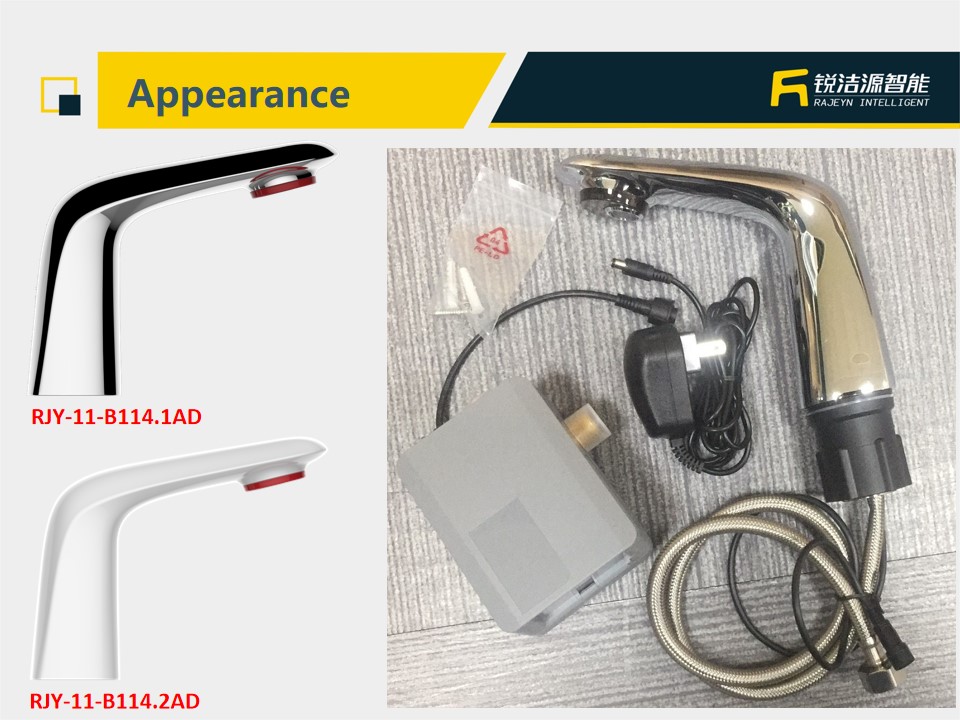

The touchless lavatory faucet RJY-11-B114.1/2AD has two colors option, one is white color and the other is chrome color. These two touchless faucets use active infrared sensor technology that allows starting the flow of water without touching the faucet. When you put your hands near the faucet spout, the water starts flowing automatically. When your hands leave, the water stops. Or waiting after the setting time, normally 60 seconds and the water automatically stops.

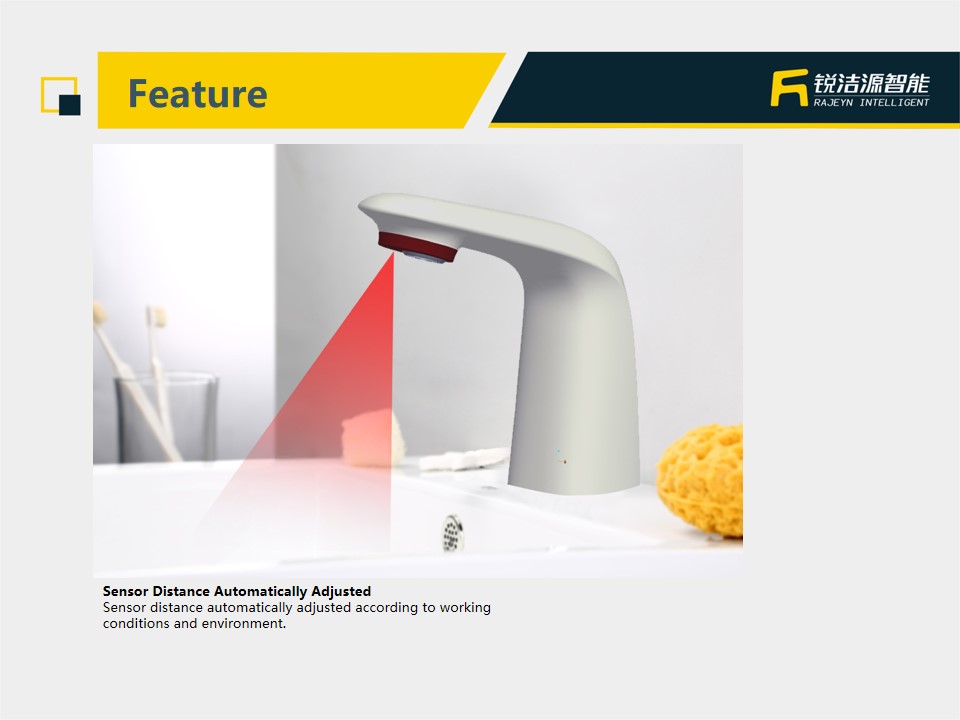

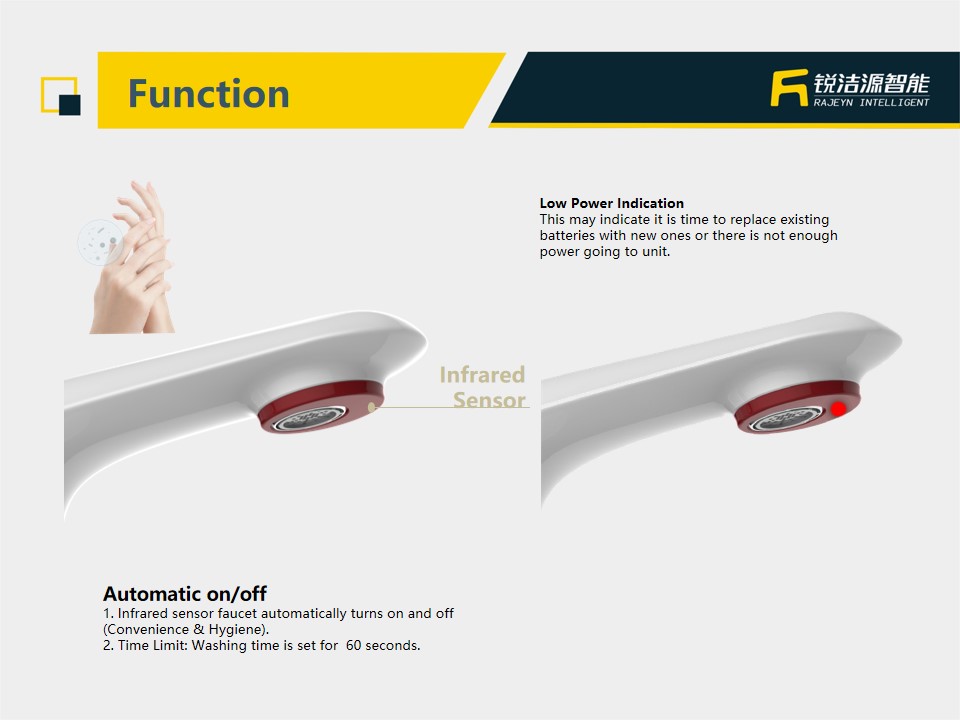

The infrared sensor is on the spout that can not be easily found. The sensor distance is adjustable by a remote controller.
This faucet uses active infrared sensor technology that allows starting the flow of water without touching the faucet. The faucet is for cold water only, but it can be with a mixing valve that can turn the cold water to be mixing hot water. Both the touchless faucet and mixing valve can be easily installed. It’s a commercial touchless faucet that can be widely used in public restrooms or home bathrooms.
It is made of brass with high quality chroming surface. Brass is durable and widely used in bathrooms and public restrooms. It is single hole design for the wash basin installation. The sensor tap is also called sensor faucet, touchless faucet, automatic faucet, touch free faucet. The sensor is on the faucet body, when people get close to the faucet, putting their hand in the sensor detect area, the sensor will activate water flow automatically, and the water will stop when you take your hand away. Or waiting after the setting minutes, normally 60 seconds and the water automatically stops.

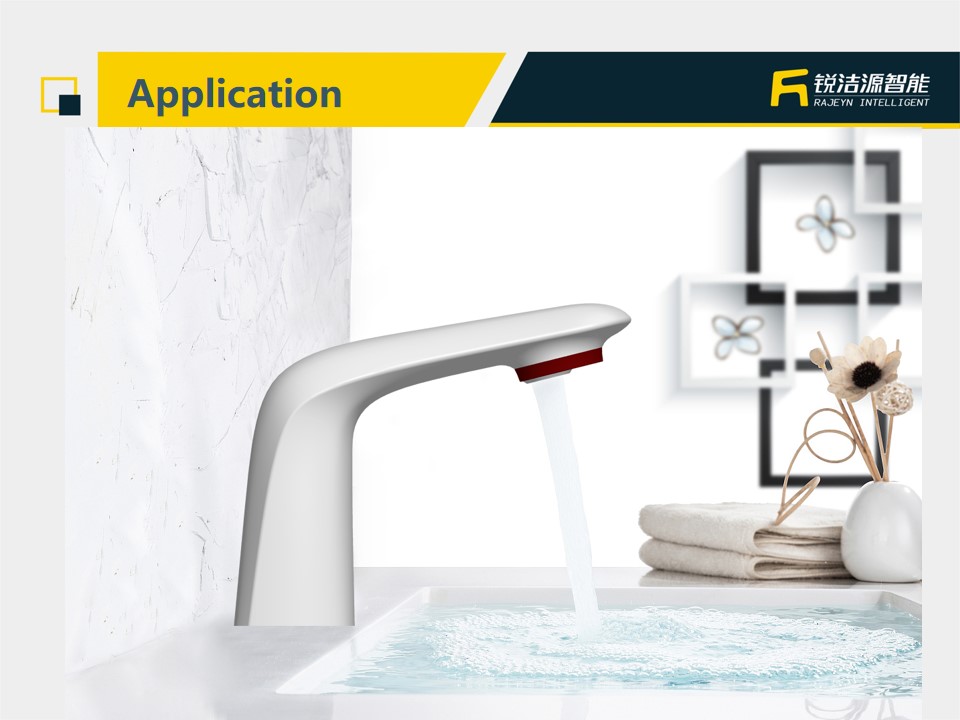

The sensor eye is hidden into the water spout and the whole faucet is compact and shining, which looks elegant and nice when installed to the public or residential bathrooms.
• Touchless automatic sensor: Put your hand in the sensor range without touch, water flows, leave the sensor range, water stops. Water stops automatically after 1min continuous flow.
• Water saving: Water efficient faucet reduces overall water usage without sacrificing water, which saves water than regular manual kitchen faucet. Water stops automatically after 1 min continuous flow.
• Energy saving: Battery shall last approximately 3000 times/month for two years.

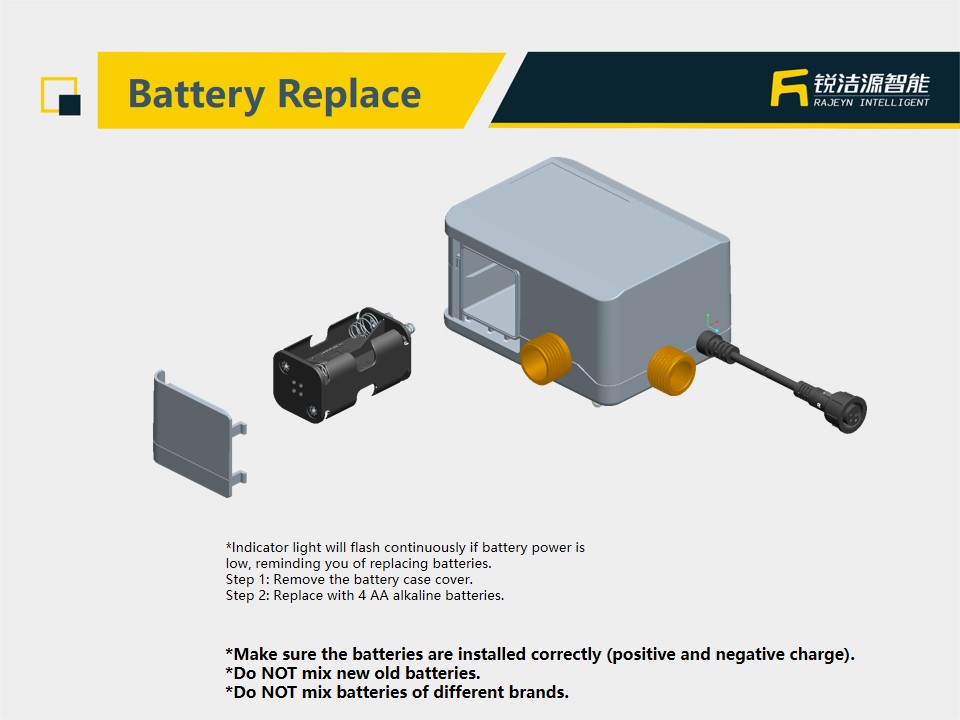

• Low power indication: This may indicate it is time to replace existing batteries with new ones or there is not enough power.
• Healthy and Safe: with touch-free faucet for the basin, it can prevent the spread of bacteria and germs. It’s not only time-saving but also hygienic.

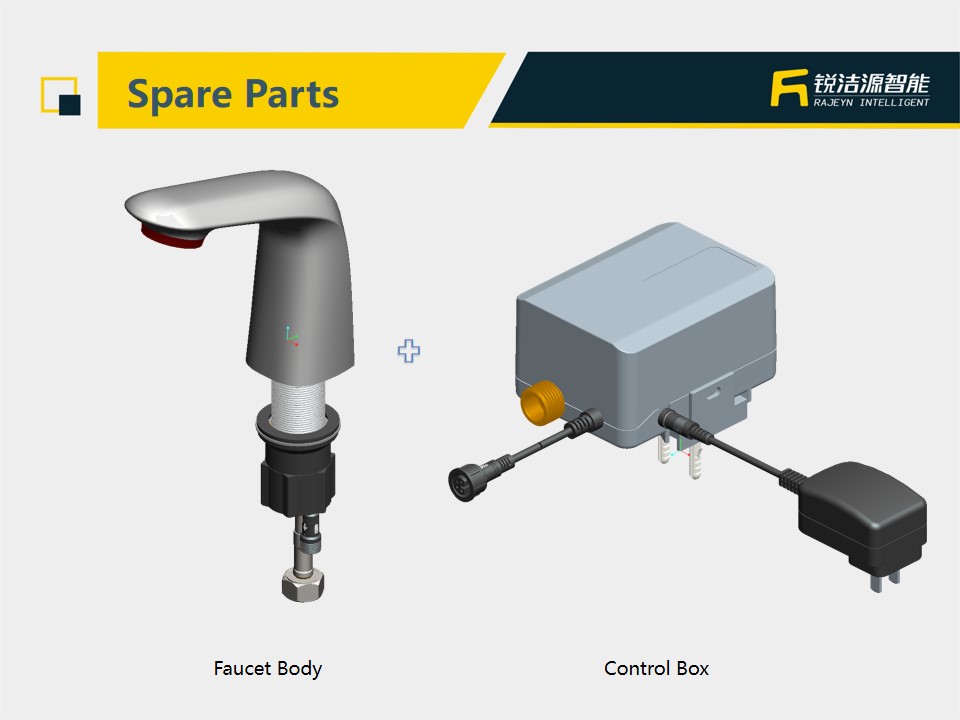

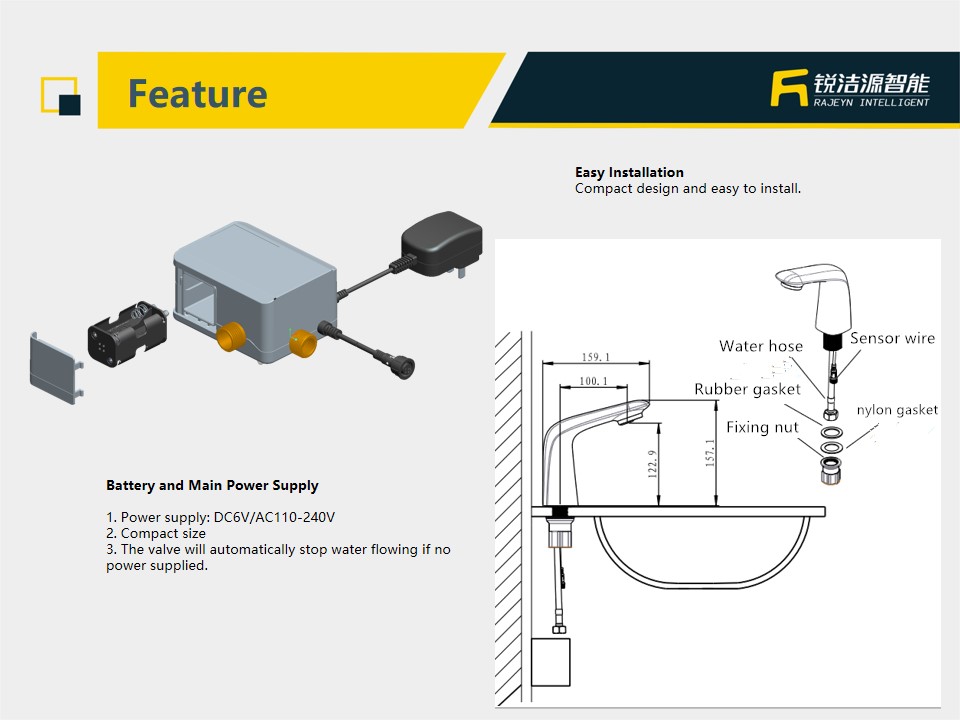

This touchless faucet control box

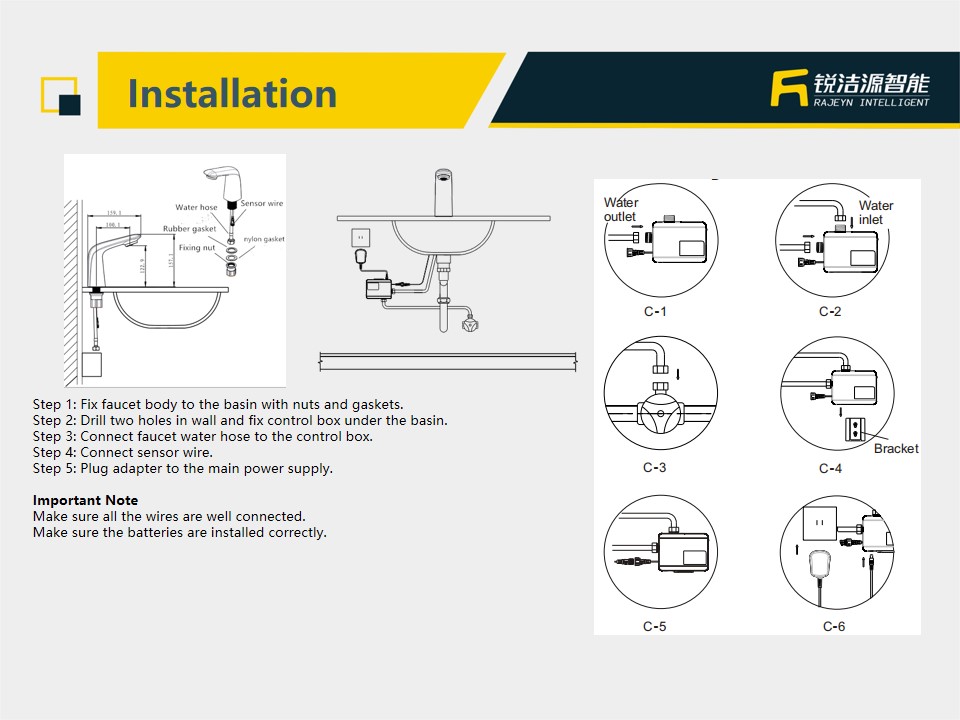

How to Install this model faucet?
Step 1: Fix faucet body to the basin with nuts and gaskets.
Step 2: Drill two holes in wall and fix control box under the basin.
Step 3: Connect faucet water hose to the control box.
Step 4: Connect sensor wire.
Step 5: Plug adapter to the main power supply.
Important Note
Make sure all the wires are well connected.
Make sure the batteries are installed correctly.
