Water Flow/Temperature Sensor

Function
  • Detect water flow: when the water is not flowing, sensor is in sleep mode with very low power consumption, and when the water is flowing, start detection of water flow and water temperature.
  • Detect water volume and water temperature: the sensor can detect the water flow and water temperature and convert it into data output
  • Serial communication: the data of water flow and water temperature are transmitted through the standard serial port
  • Power supply anti-reverse connection: when reversely connect positive and negative poles, the sensor does not heat up and not damaged, and it can work normally after the power supply is correctly connected
Feature
  • Low power consumption current less than 30UA, suitable for battery powered places
  • Embedded design facilitates product structure design
  • Flow and temperature digital output for easy application
  • Super strong anti-electromagnetic interference: can pass the EMC certification, and pass the group pulse experiment of 5KHZ~100KHZ/4KV
  • POM for main body, 304 S/S for temperature probe shell, which is in line with various environmental protection
Application

The sensor is suitable for smart showers, smart basin faucets, smart kitchen faucets and so on that automatically display the flow and water temperature after turning on the water. It can also be used in places where liquid flow and temperature need to be detected.

Technical Parameters
ITEMS Parameters ITEMS Parameters
Max. Withstand Voltage 5V Working Temperature 1~60℃
Working Power DC 3.3V Storage Temperature -20~70℃
Static Power ≤30uA Waterproof IPx7

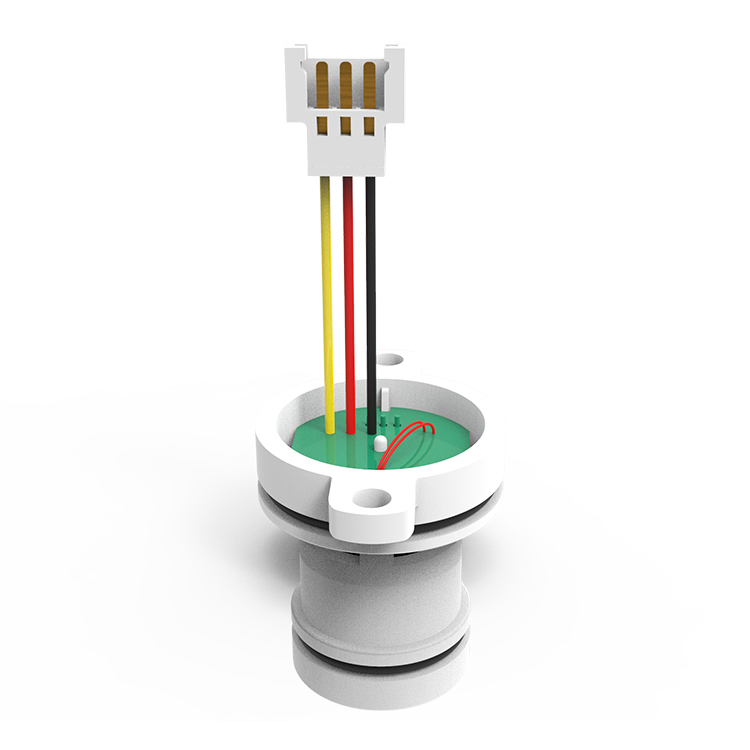

Sensor Photos

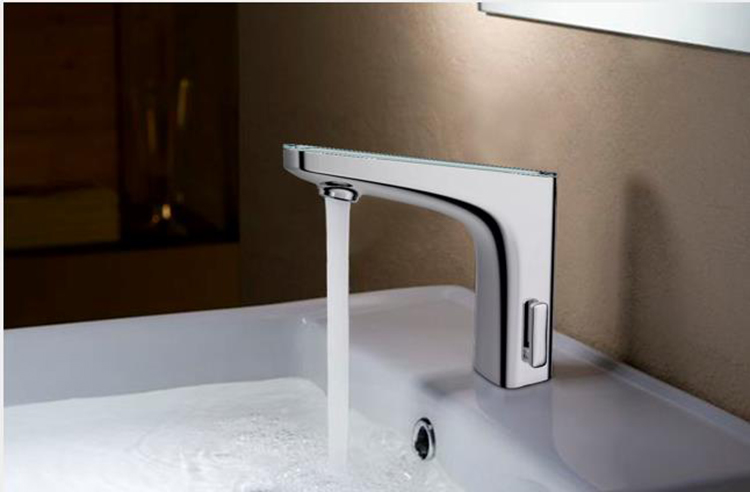

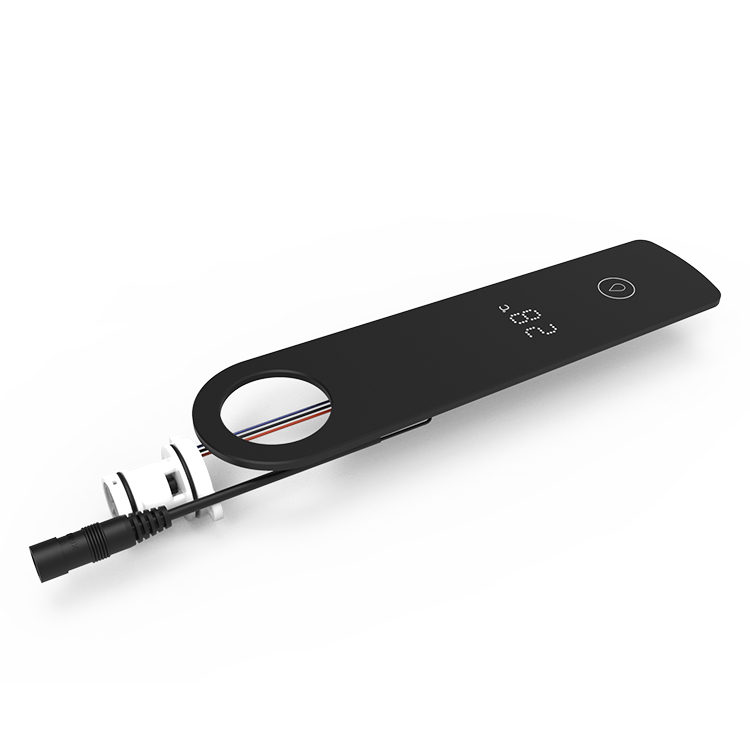

Application
