2.4G Remote Control Sensor

Function
  • Remote control water switch: wave the remote sensor to open water, then wave again to close the water, and the water will automatically turn off after 180 seconds.
  • Display water temperature: When the water is flowing, remote sensor will display the water temperature in real-time.
  • 2.4G communication function: 2.4G wireless connection between the remote sensor and the control box.
  • Low battery reminder: When the remote sensor battery is low, the remote sensor flashes for 10 seconds to remind you to replace the battery, and the water not flow. When control box battery is low, the remote sensor flashes for 10 seconds to remind you to replace the battery.
  • Power supply anti-reverse connection: when reversely connect positive and negative poles, the sensor does not heat up and not damaged, and it can work normally after the power supply is correctly connected
  • Power-off protection: When the battery or mains power is suddenly cut off, the remote sensor will automatically turn off the solenoid valve within 20 seconds
Feature
  • IR proximity detection technology, single-chip solution highly integrated, reliable quality
  • Remote sensor and the control box are wireless connection, and the new product design and after-sales maintenance are very convenient
  • Low power consumption: Static working current is less than 40UA for remote sensor, and is less than 120UA for control box, which is suitable for battery-powered places
  • Super strong anti-electromagnetic interference: can pass the EMC certification, and pass the group pulse experiment of 5KHZ~100KHZ/4KV
  • Super light resistance: The sensor module can work reliably in the environment with a light intensity of 10000LUX
  • Anti-temperature drift: Sensing distance change less than 8% in ambient temperature 5~65 ℃
  • Sensing distance is adjustable by the remote control, which is convenient to customize based on your needs
Application

This sensor module is applied to smart basins and kitchen faucets, and can be adapted to K-06, K-07, K-08 control boxes

Technical Parameters For Remote Sensor
ITEM DATA ITEM DATA
Max. Withstand Voltage 3.6V RF Data Rate 2Mbps
Working Power DC 3V Sense Effective Sensitivity 256ms
Static Consumption ≤30uA Leave Effective Sensitivity 256ms
Sensing distance 12cm, adjustable range 5~20CM(to standard whiteboard) Working Temperature 1~60℃
Wireless Communication Distance ≥3m Storage Temperature -20~70℃
Wireless Communication Frequency Band 2.4GHzISM Waterproof IPx5
Technical Parameters For Control Box
ITEM DATA ITEM DATA
Max. Withstand Voltage 10V RF Data Rate 2Mbps
Working Power DC6V/AC220V(50~60Hz) Scan Cycle 512ms
Static Consumption ≤170uA Working Temperature 1~60℃
Wireless Communication Distance ≥3m Storage Temperature -20~70℃
Wireless Communication Frequency Band 2.4GHzISM Waterproof IPx7

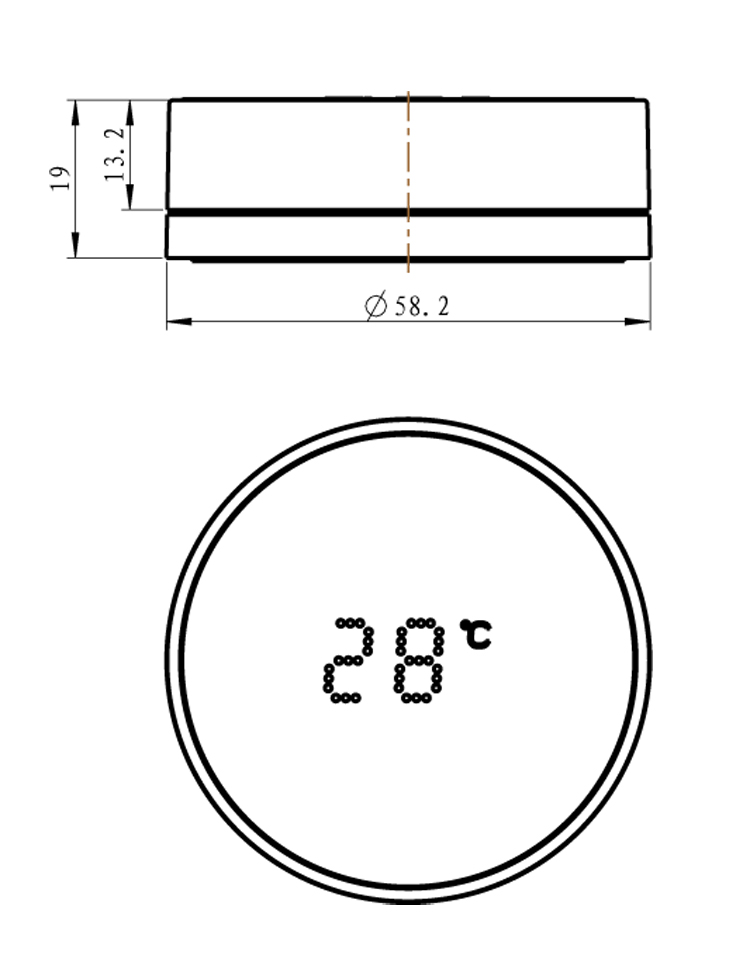

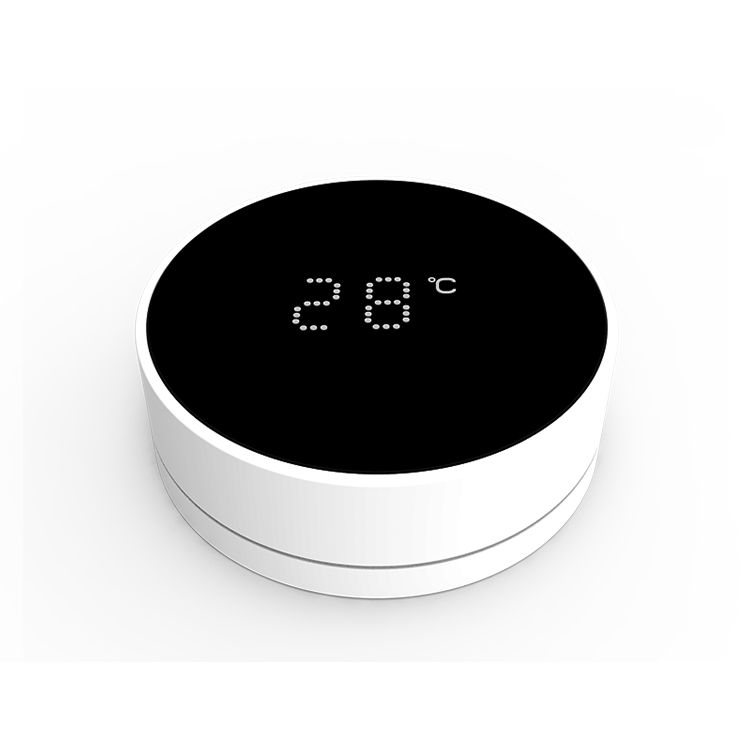

Remote Sensor Photos and Dimension
