Automatic and Wave on Kitchen Faucet Sensor
Function
  • Automatic on/off: Object in the sensor range, water automatically comes out. Object out of the sensor range, water automatically stops. Security stop 60 seconds.
  • Wave on/off: Wave the sensor, water automatically comes out. Wave the sensor again, water automatically stops. Security stop 180 seconds.
  • Independent CPU: The sensor is controlled by an independent CPU for sensing distance detection. The universal serial port is used to communicate with the control box. The sensor and the control box can be interchanged.
  • Low power reminding: When the battery is low, the indicator light flashes for 10 seconds to remind you of replacing with new batteries. The flush valve will not flush.
  • Anti-reverse wire connection: The sensor will not be heat or damaged if the power supply wire positive and negative terminals are reversely connected. The sensor will work normally if wires are correctly connected.
  • Power protection: When the battery or mains power suddenly cut off, the sensor will automatically turn off the solenoid valve within 20 seconds.
Feature
  • IR near detection technology, single chip solution is highly integrated and reliable.
  • Use strong anti-interference voice chip and software algorithm, which can be used in noisy environment.
  • Super resistant to electromagnetic interference. The sensor can pass 4KV/5khz group pulse experiment and pass EMC certification.
  • Super anti-light performance. Sensor will work reliably in 10000LUX light environment.
  • When the temperature changes from 5℃ to 60℃, the induction distance changes by less than 8%.
  • Remote controlled sensor distance and security stop timing.
Application

This sensor module is used for double-sensor basin faucets and kitchen faucets, used together with Rajeyn control box RJY-K06, RJY-K07, RJY-K08, RJY-K09.

Technical Parameters
ITEMS Parameters ITEMS Parameters
The max Voltage 8V Sensor Distance Wave on/off:11CM±10%;
Automatic on/off:28CM±10%
Working Voltage DC 6V Effective Sensitivity (in sensor range) Wave on/off:128~256mS;
Automatic on/off:512mS
Static Power Consumption ≤60uA Effective Sensitivity  (out of sensor range) Wave on/off:128~256mS;
Automatic on/off:512mS
Working Temperature 1~60℃ Storage temperature -20~70℃
Waterproof IPx7

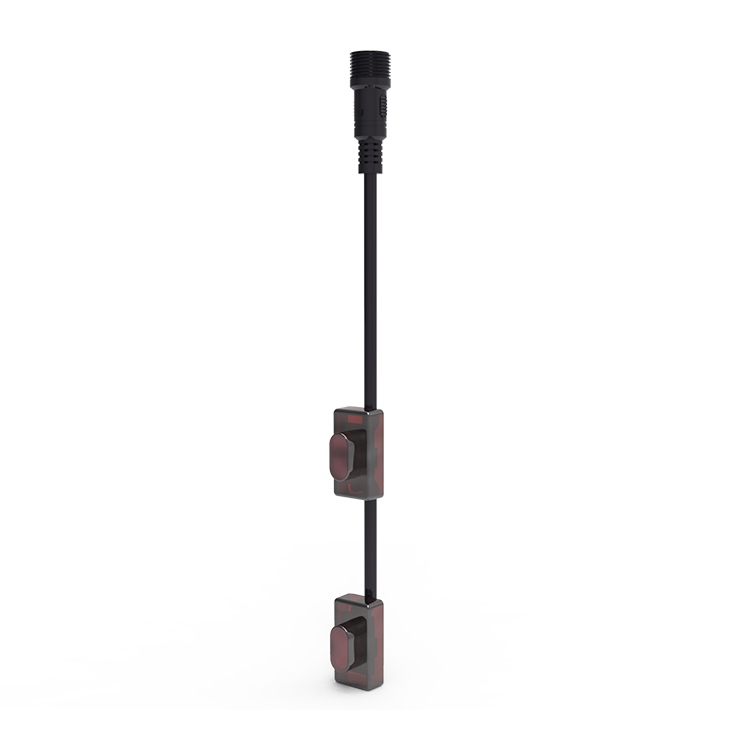

Sensor Photos
